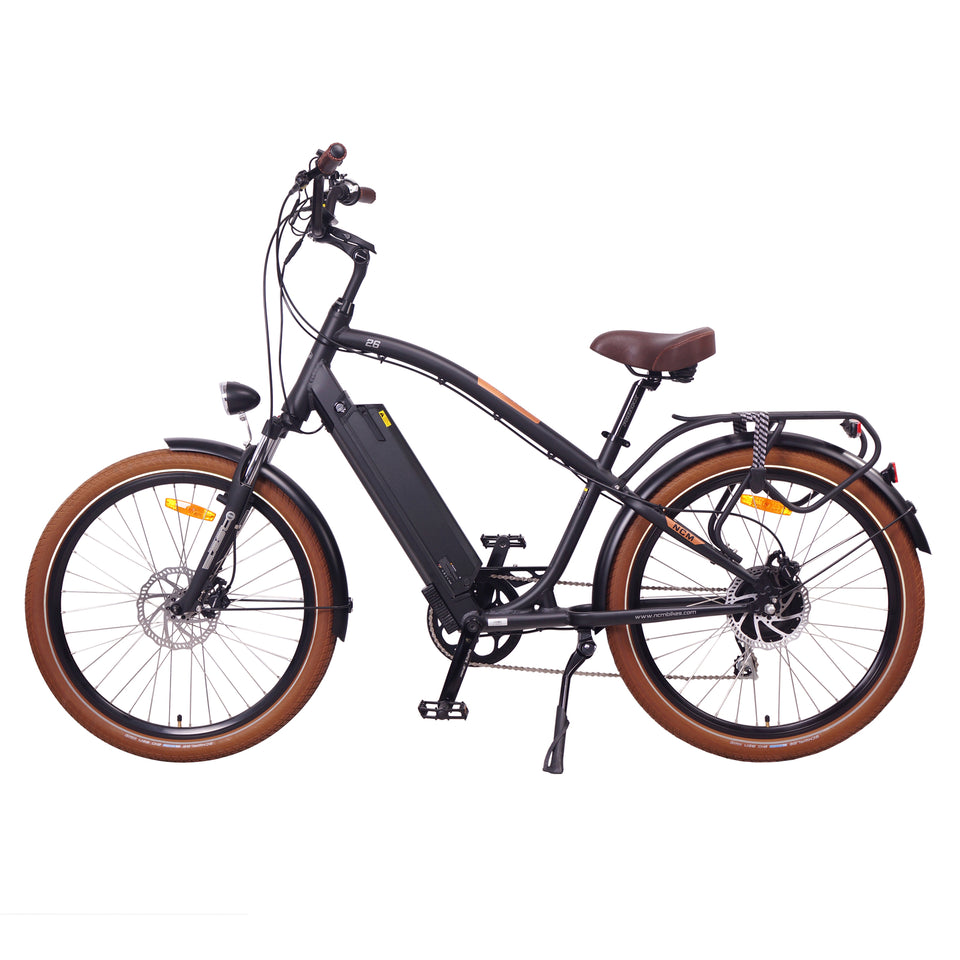

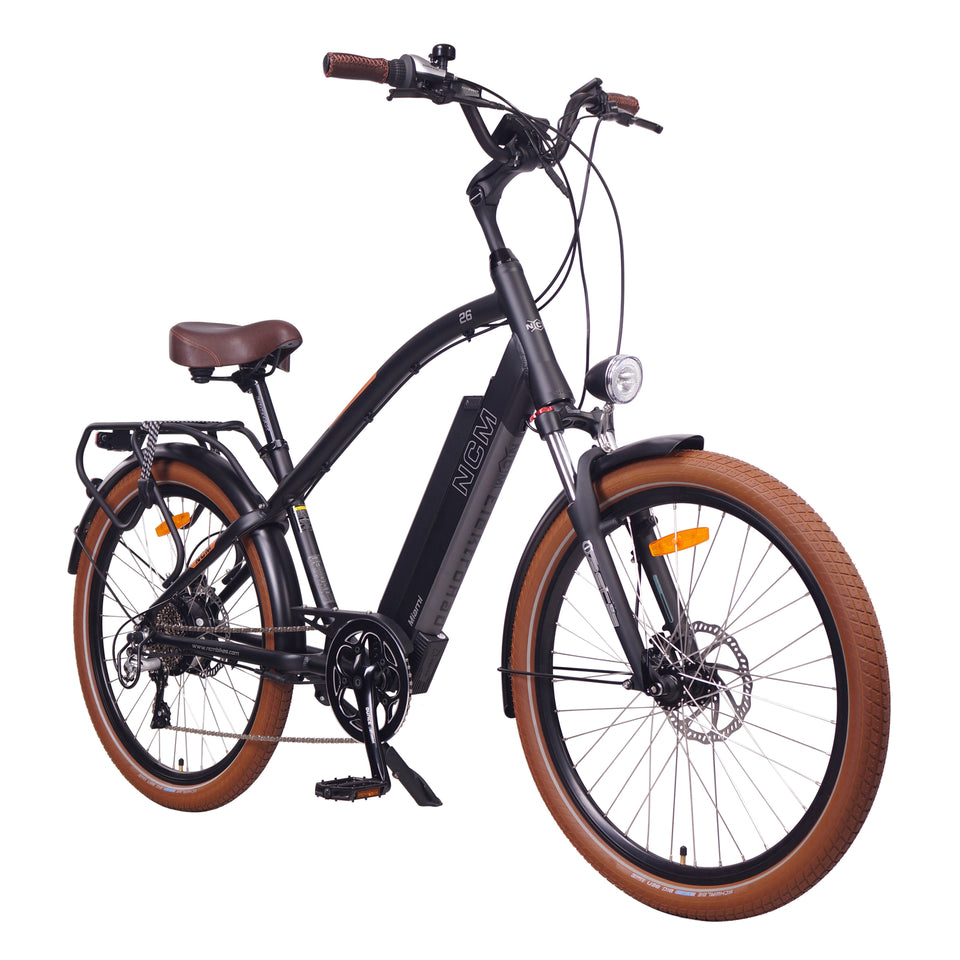

The NCM Miami E-Cruiser is a true cruiser hybrid E-bicycle and a perfect bike for those casual relaxing rides around your neighbourhood on bike paths or at the beach. The stylish iconic design will not only make you stand out but you will have a very comfortable ride thanks to the Selle Royal extra wide seat and adjustable raised handlebars. If you want to enjoy riding and feel like being in an armchair, then the Miami E-Cruiser is for you. This E-bike is suited for short and long trips with its now even longer-lasting battery on the NCM Miami (perfect for charging all your other portable devices with its USB port), a powerful motor, and high level of comfort.
- Ergonomic bicycle Grips
- Comfortable sitting posture
- Easy handling of the components

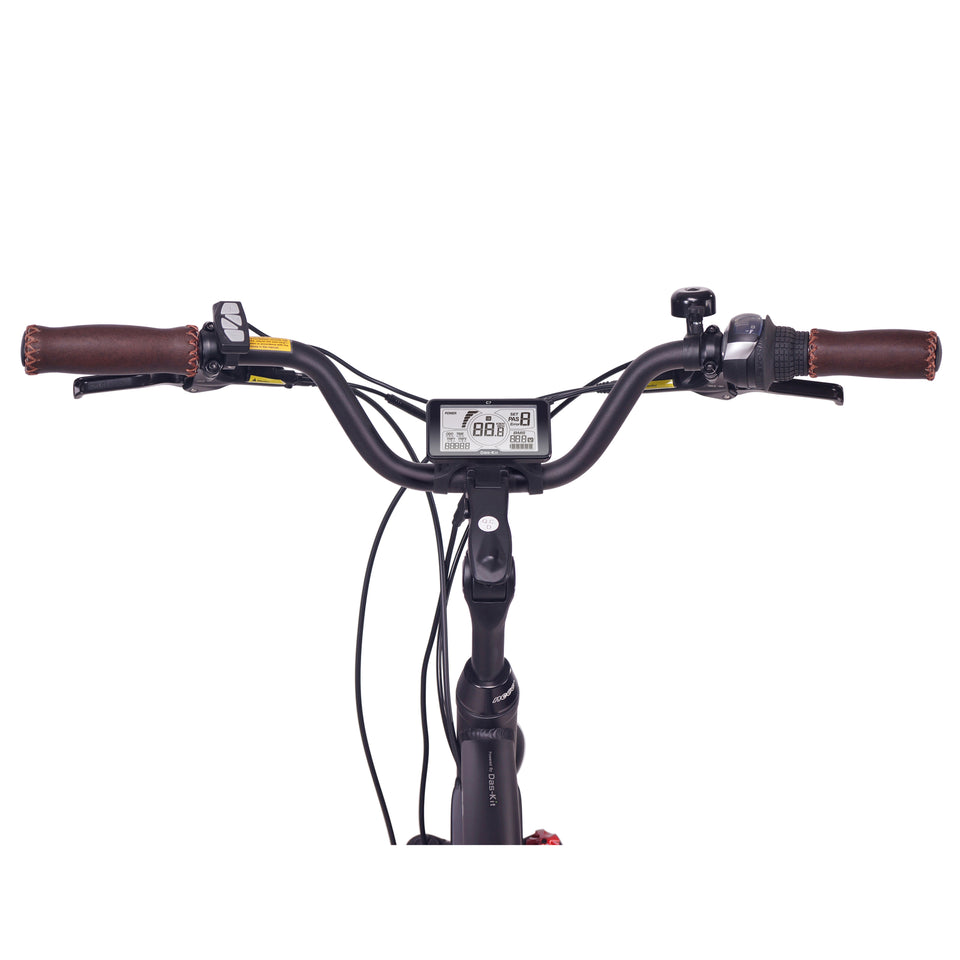

- Adjustable handlebar for a good driving position
- All important controls easily accessible
- supplied with 48V to deliver a high output power
- over 750Wh capacity for a longer distance
- reach up to 150km (depending on the conditions)

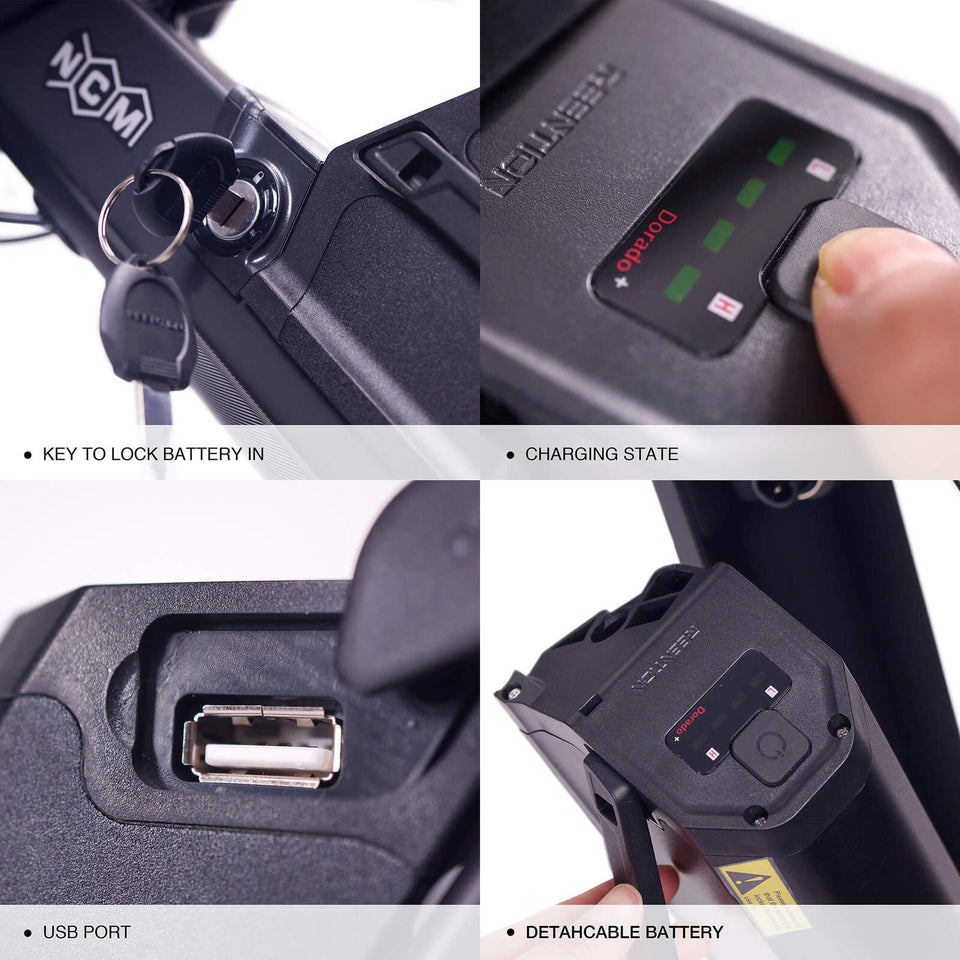

- battery integrated in the frame for better aesthetics
- easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
Front Brake:

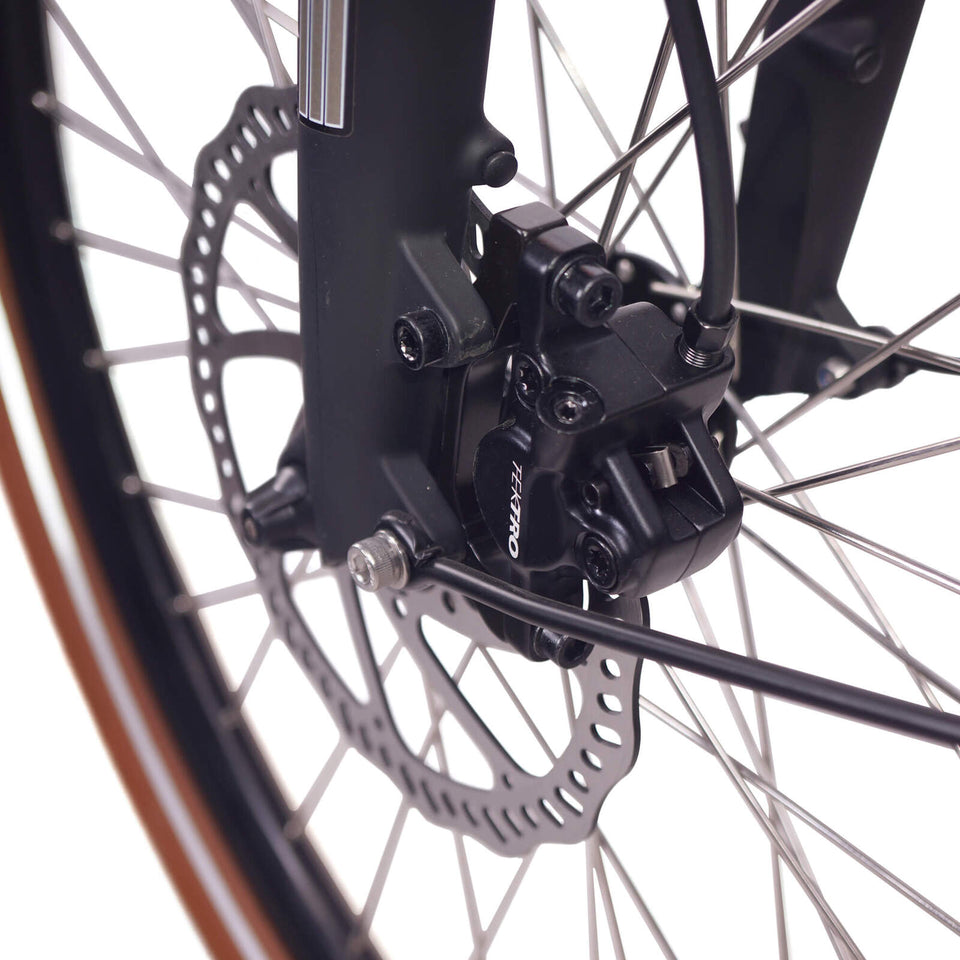

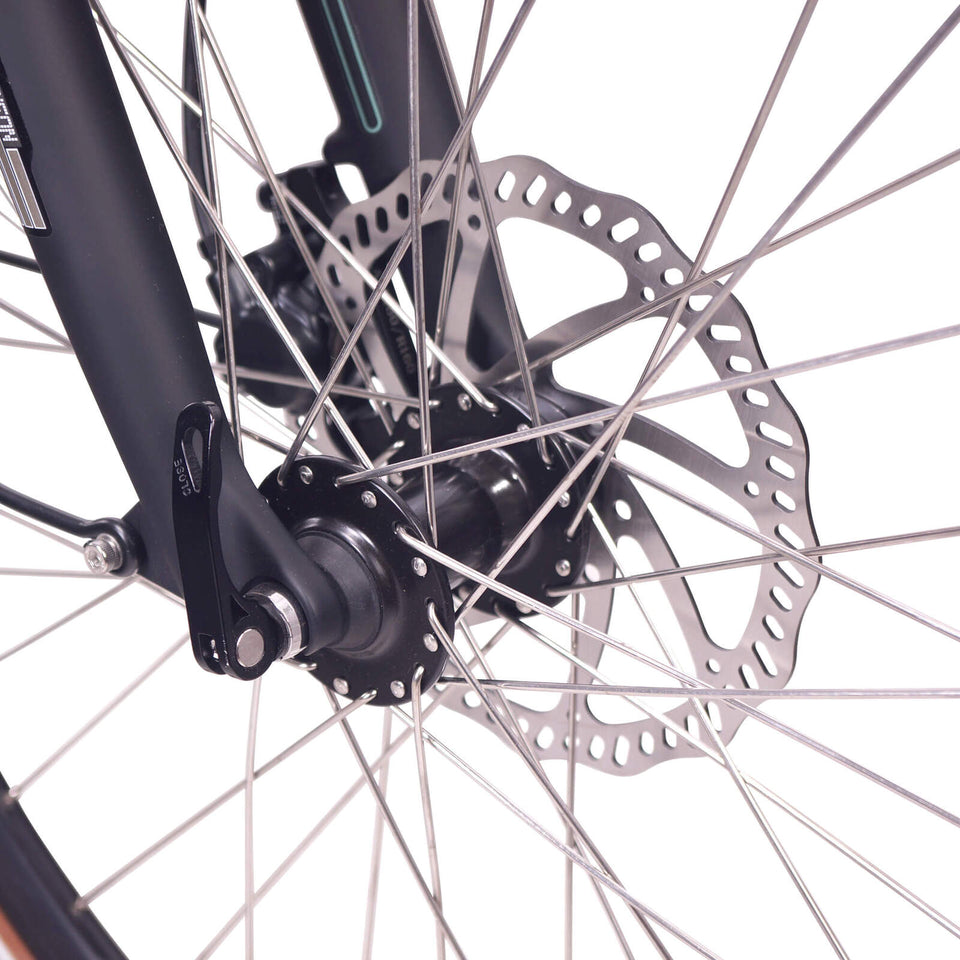

- Reliable hydraulic disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.
Rear Brake:
- Reliable hydraulic disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

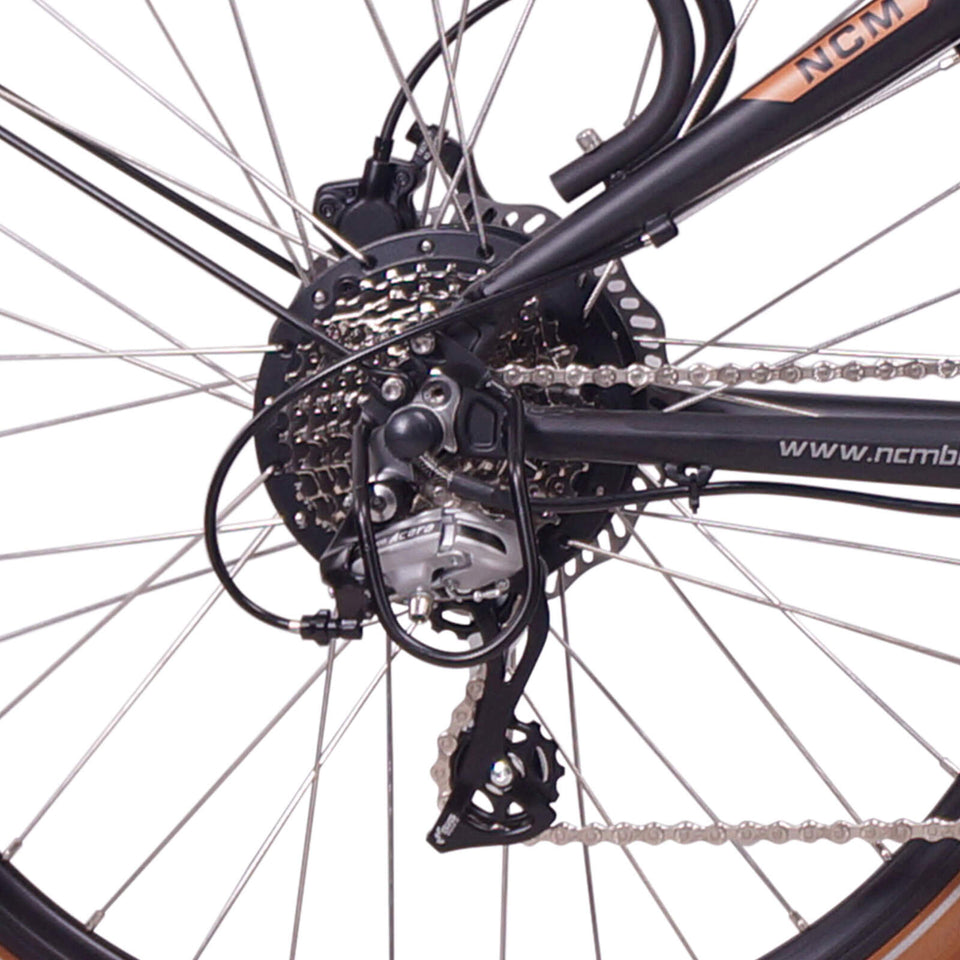

- The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.
- A large display shows all necessary settings.
- 6 support levels and a pushing aid of up to 6 km/h are adjustable.
- The display’s control buttons are deliberately placed on the left side – close to the left hand – so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.
Quality inspection and final adjustment:
NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality.. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through an friendly driving experience and the promotion of a fun and active lifestyle.
NCM Miami 48V 16Ah Details
General Information
- Weight: 26”= 27kg
- Type: E-Cruising
- Wheel size: 26”
- Load capacity: Max. 125kg
- Maximum speed: 25km/h
Electric parts
- Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
- Controller: Das-Kit, CT5-I5, 48V 15A

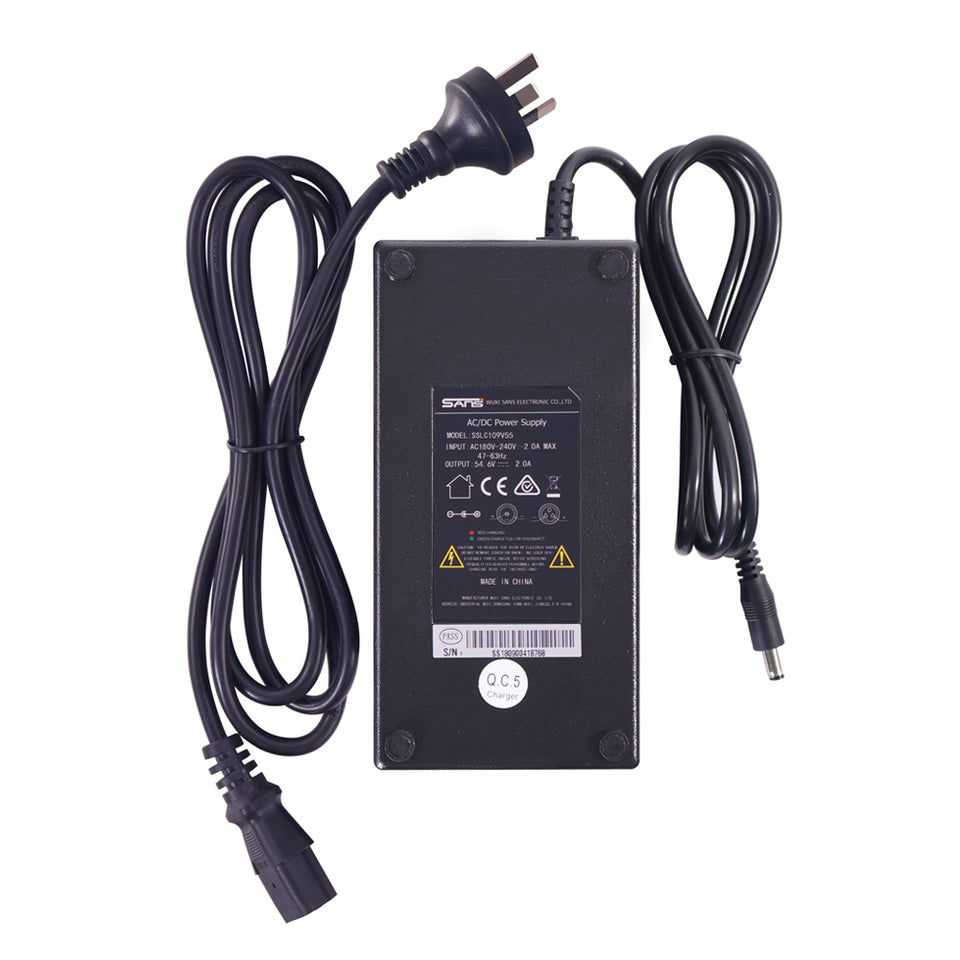

- Charger: 48V 2A included (round plug) DC483DE
- Battery: DEHAWK I5-4816H,48V 16AH, 768WH, with USB port
- Average range: 70-150km depending on assistance level

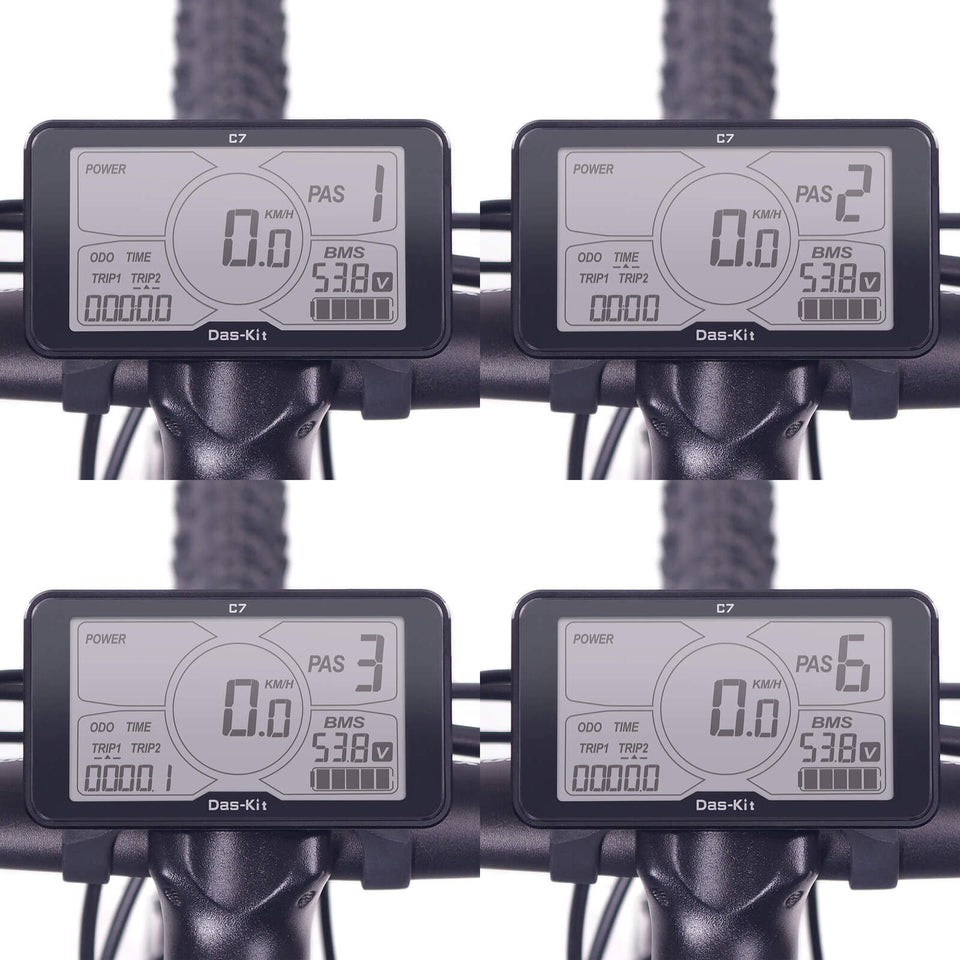

- Display: LCD Das-Kit C7 display with many functions, 6km/h walk assist

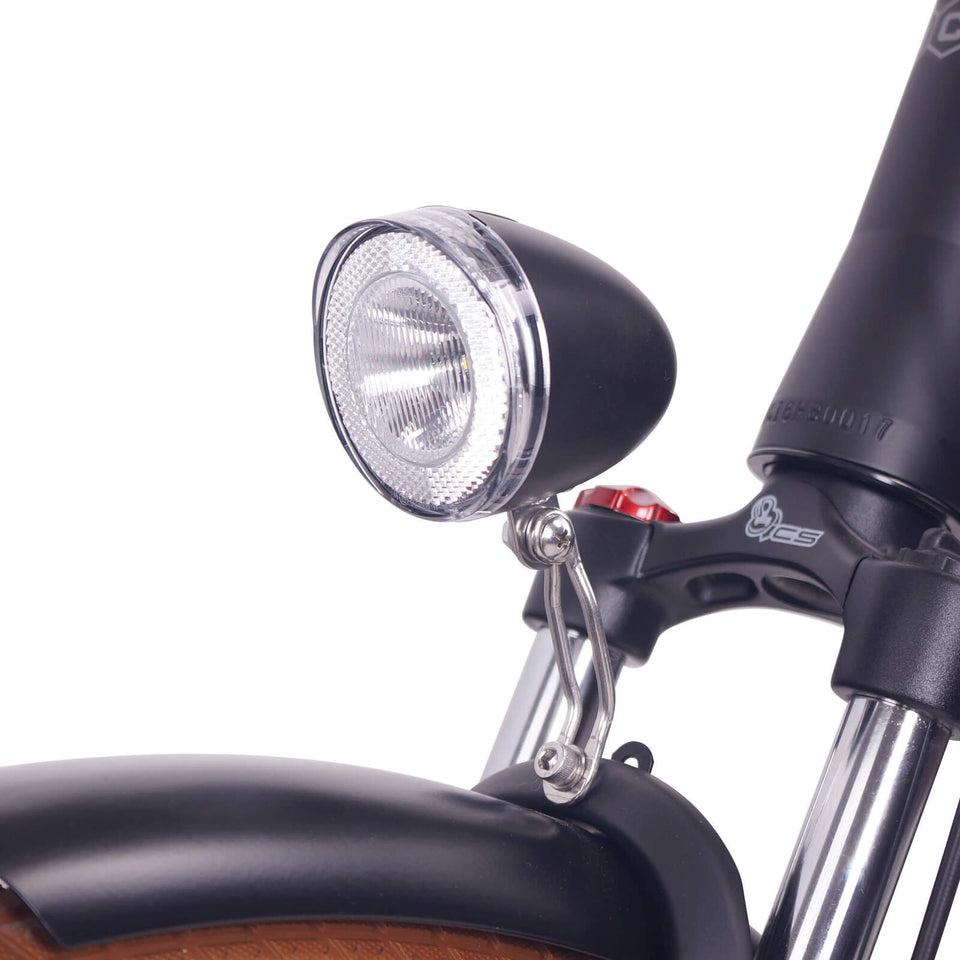

- Front/Rear Light: Spanninga Swing, 48V, 30 Lux Spanninga, Solo 2xAA
Bike parts
- Frame: Alu. 6061, 26″*480MM
- Handelbar: Promax MA579 adjustable
- Fork: SR Suntour RST-NEON-600C (preload, lockout)
- Brake Levers: Tektro, with brake sensors on both sides
- Brakes F/R: Tektro hydraulic Disc Brakes
- Crank set: Prowheel, 46T (including chain guard)
- Gear shift: Shimano, Acera M360, 8 speed
- Pinion: 8-speed screw ring, 11-32T
- Tyre: Schwalbe Swallow, Big Ben 26 “2.15
- Saddle: Selle Royal, extra wide, brown (imitation leather)
- Seatpost: Promax, Aluminum 30.4 * 300MM diameter
- Handles: Selle Royal, brown (imitation leather)
- Pedals: Wellgo, B087, black
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.

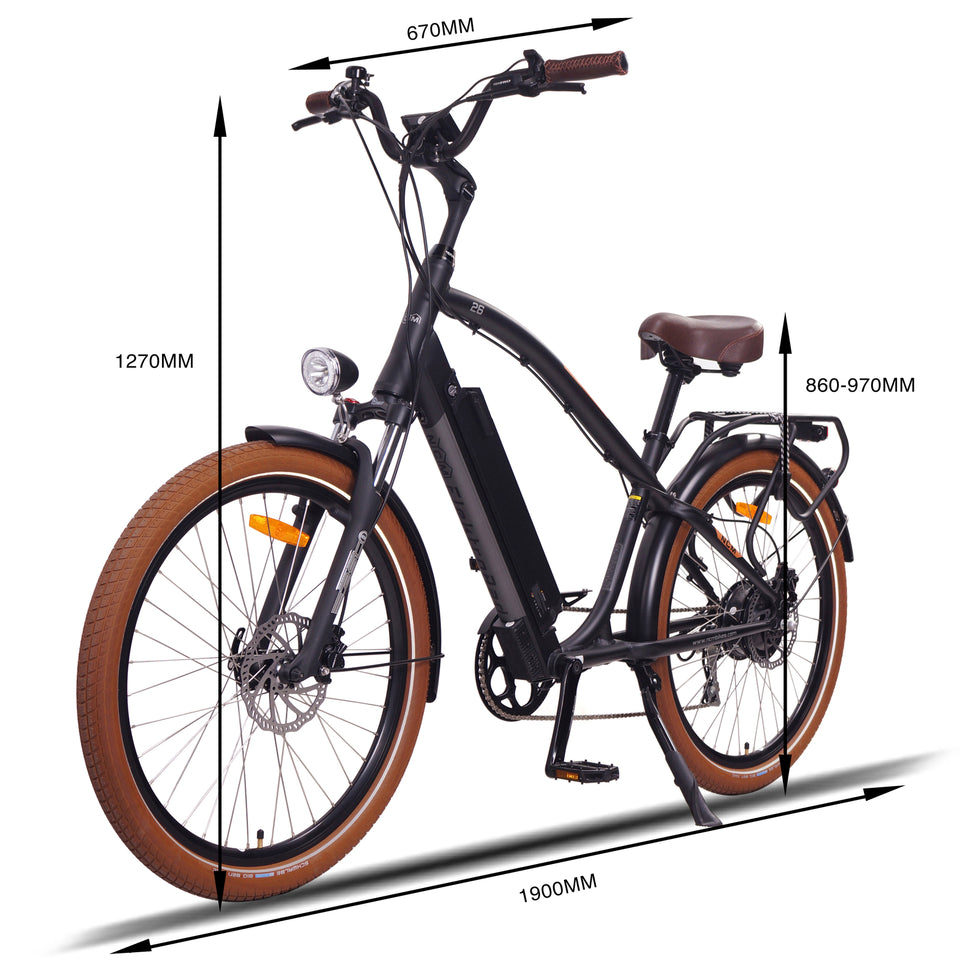

NCM Miami E-Cruiser Dimensions
- Please note: These values are minimum and maximum values for the bike to be properly rideable. The bike will be most comfortable near the middle of the range indicated. The minimum value should be treated as the absolute minimum, as anything lower may result in the rider not being able to reach the pedal at the bottom of the crank cycle. Using inseam length is much more accurate and appropriate for bike sizing than height. The frame size of a bike is generally governed by the length of the seat tube.
- Using inseam length is much more accurate and appropriate for bike sizing than height. The frame size of a bike is generally governed by the length of the seat tube.
- The frame size of a bike is generally governed by the length of the seat tube.
