Model Overview
Unleash Your Thrill-Seeking Spirit with the RFN Rally Electric Motorbike!
Elevate your adventure game with the awe-inspiring RFN ARES RALLY electric motorcycle, the crown jewel of the RFN ARES MX series. Get ready to redefine your limits and embrace the rush of electrifying power beneath you.
Prepare to be captivated by the earth-shattering 5kw motor with a peak 12kw output that propels you to heart-pounding speeds of up to 80km/h. Need for speed? You’ve found it. Accelerate from 0 to 50km/h in a mere 3.2 seconds, leaving ordinary bikes in your dust.
But it’s not just about velocity – it’s about conquering every terrain with mastery. The RFN Rally Pro features fully adjustable front forks with a staggering 200mm travel, ensuring you effortlessly navigate through rugged landscapes and demanding trails. The 18/19″ motorcycle grade wheels offer superior grip and control, setting the stage for a ride that’s both dynamic and commanding.
Let’s talk range – no more boundaries holding you back. Our premium 74V, 3,182Wh 43AH Premium Battery features your ticket to extended escapades. Fuel your hunger for exploration as you push the boundaries of distance and embark on journeys that echo with exhilaration.
But here’s where the adrenaline truly kicks in: the removable seat. Designed for the fearless and the bold, this feature beckons trials riders to grasp the handlebars and seize the challenge. Every leap, every curve, every twist – a symphony of daring maneuvers that resonate with the call of the wild.
So, dear adventurer, embrace the unknown, chase the horizon, and shatter limits aboard the RFN ARES RALLY MX Electric Dirt Bike. It’s not just a ride; it’s a dare to embrace your most daring self.
Dare to Ride,
The RFN ARES Team
SECURE YOUR’S TODAY – IN STOCK NOW! ⚡️
ARES RALLY MX
Speed & Range
- Range 100km (Cruising at 40km/h on flat paved road)
- Top Speed 80km/h
Battery
- 74V / 3,182Wh, 43AH Premium lithium cells. Battery is also removable and can be charged in bike or separately.
Ride Modes
- Mode 1 Tortoise mode: The ultimate mode energy conservation exploration. Limited to 25 km/h with 3.5hrs battery range.
- Mode 2 Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
- Mode 3 Rocket mode: Ultimate 60s Burst of Power. Track and race mode, maximum torque and speed, riding time up to 1h.
- Mode 4 Reverse mode: Limited to 9 km/h.
Features
- Hill Ability Up to 80% Inclines
- Seat Removable to convert bike into Trials Bike
- Warranty 1 Year
Brakes

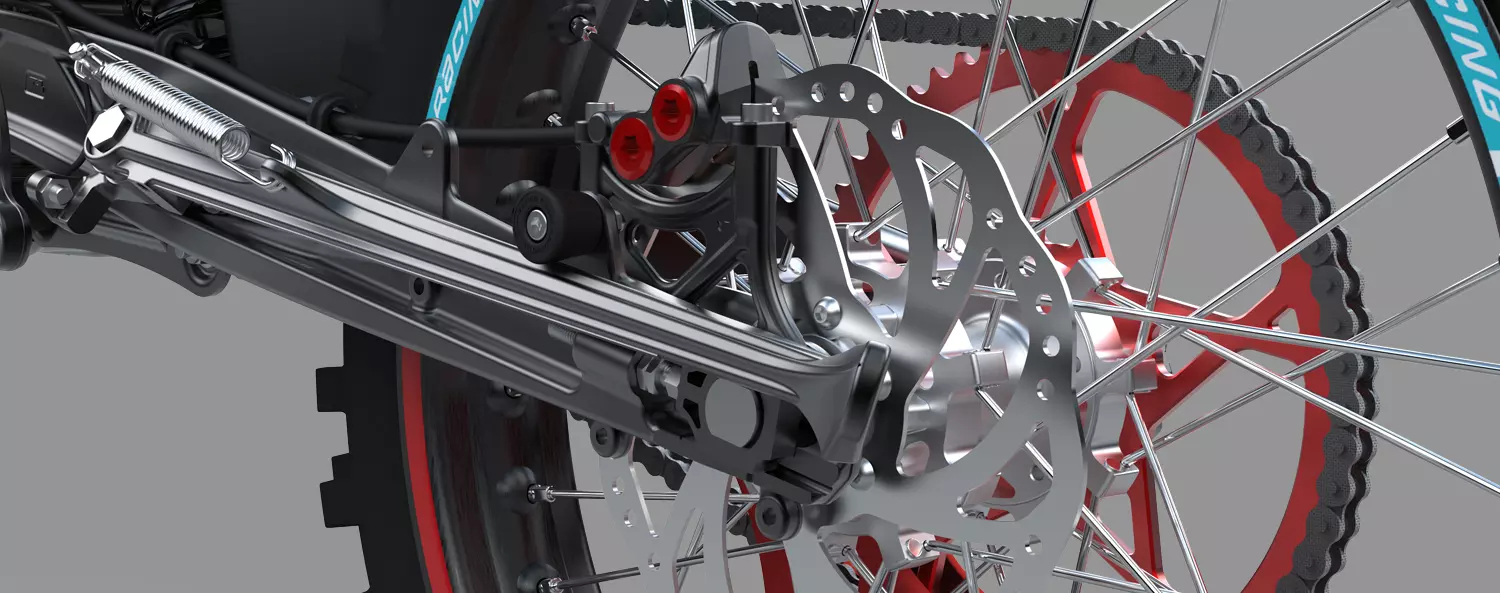

- Front and Rear 4-piston hydraulic disc, 210mm
- EABS Electric Regenerative Braking
Charging
- 2-3h with Fast Charging Functionality
Display
- LCD Multi-Function (ODO, Trip, Battery Level, Speed etc)
Controller
- 150A Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Electric Motor Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DXS
- Sprocket 13-58T Standard (Optional 11-58T Available)
- Rated Power 5 kW
- Peak Power 12 kW
- Max Torque of Motor 58 N·m
- Max Torque of Rear Wheel 270 N.m or 305 N·m with Optional 11-58T Sprocket
Construction
- Frame 6082 aluminium extruded, forged, CNC machined and steel frame
- Handlebars 6061 aluminium, 760mm length
Suspension
- Front Upside Down Fork, 200mm travel, Fully adjustable
- Rear Mono-Shock, 74mm travel, adjustable
Wheels & Tyres
- Hubs Forged and CNC aluminium RFN hubs with 20mm axle.
- Rims F 19″/ R 18″ (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
- Tyres F: CST CM721 70/100-19 off-road,
- Tyres R: CST CM722 90/100-18 off-road
Dimensions
- Fork Angle 340mm – 13.39”
- Offset 15mm in triple clamps, 45mm in forks.
- Seat Height 860mm – 33.86”
- Overall 1,937 x 770 x 1,080 mm
- Ground Clearance 340 mm
- Trail 111mm – 4.37”
- Wheel Base 1,330mm – 52.36”
Weights
-
N.W of Battery 15 kg
- N.W of Complete Bike 68 kg
- Max Loading 120 kg
